Expeditionsmobil ohne Kompromisse auf Komfort

Hier wird ein Expedition/Fern- Reisemobil der Extraklasse verkauft. VB 450.000 €

Das Fahrzeug wurde im Juni 2025 fertig gestellt.

Als Basis dient ein MAN TGM 18.2 90 4X4 vom Baujahr 2015 mit aktuellen Kilometerstand 45.000 km ( Fahrzeug wird noch genutzt kann aber jederzeit abgegeben werden.)

MAN TGM 18.290 BB 4X4
Base Vehicle
MAN TGM 18.290 BB 4X4
Year of construction: 2017 ( the last without Adblue)
Wheelbase: 4500 mm
Transmission: Automatic
Driver’s cap : large 2seats
Engine: R6,6,8 l, 216kW / 290PS 1000Nm
Emission class: Euro 6
Fuel tanks 2 X 400 Liters ( 800 Liters) one Tank over a big SEPA Filter
Milage: 45.000 km ( Vehicle in use….. )
Fuel type: Diesel
OFF-ROAD FEATURES
• Permanent all-wheel drive with three locks and off-road gear reduction
• Differential lock on front axle, rear axle and center differential
• ABS, can be switched off
• Cruise control
• Central locking system
• Driver and passenger seats with air suspension, seat heating and seat air conditioning only Driverseat
Multi function steering wheel
EXTERNAL DIMENSIONS OF THE VEHICLE
Length: 9500 mm
Width: 2 500 mm
Height: 3950 mm
STUCTURE OF THE CABIN:
the cabin was built on a four -point mounted galvanized steel frame.
The cabin walls were manufactured by the company Normadcampers
the wall thickness is 60 mm and is particularly resistant due to additional inserts used
(ASP, API 2,7 mm)
the robust outer flaps were made from the same material
The windows have been manufactured by WideBird.
All windows and door are equipped with fly screens and blackout blinds.
electric folding ladder from the company Krug Austria
INTERIOR EQUIPMENT:
The cabin is divided into 3 areas: sleeping area, bathroom, living and kitchen. These areas are separated by sliding doors.
The cabin is heated using various systems.
1. Webasto diesel heater 8.5 kW for high altitudes.
2. Heat exchanger via engine heat.
3. Heating via air conditioning. ( 3,5kW )
Additionally, the heating system has a 40-liter buffer storage. Here, the heat is stored for up to 3 days. The warm water of 40 liters is also heated through the system. In addition, there is an electric heater to warmup the water.
The heating for the cabin is provided through different systems. Water underfloor heating throughout the entire cabin floor. (2 circuits) Built-in wall heating in the shower and toilet. Additionally, there are radiators installed in the living area and bedroom. In the seating area, there is a „booster function“ for quick heating of the air.ectric heater for warming.

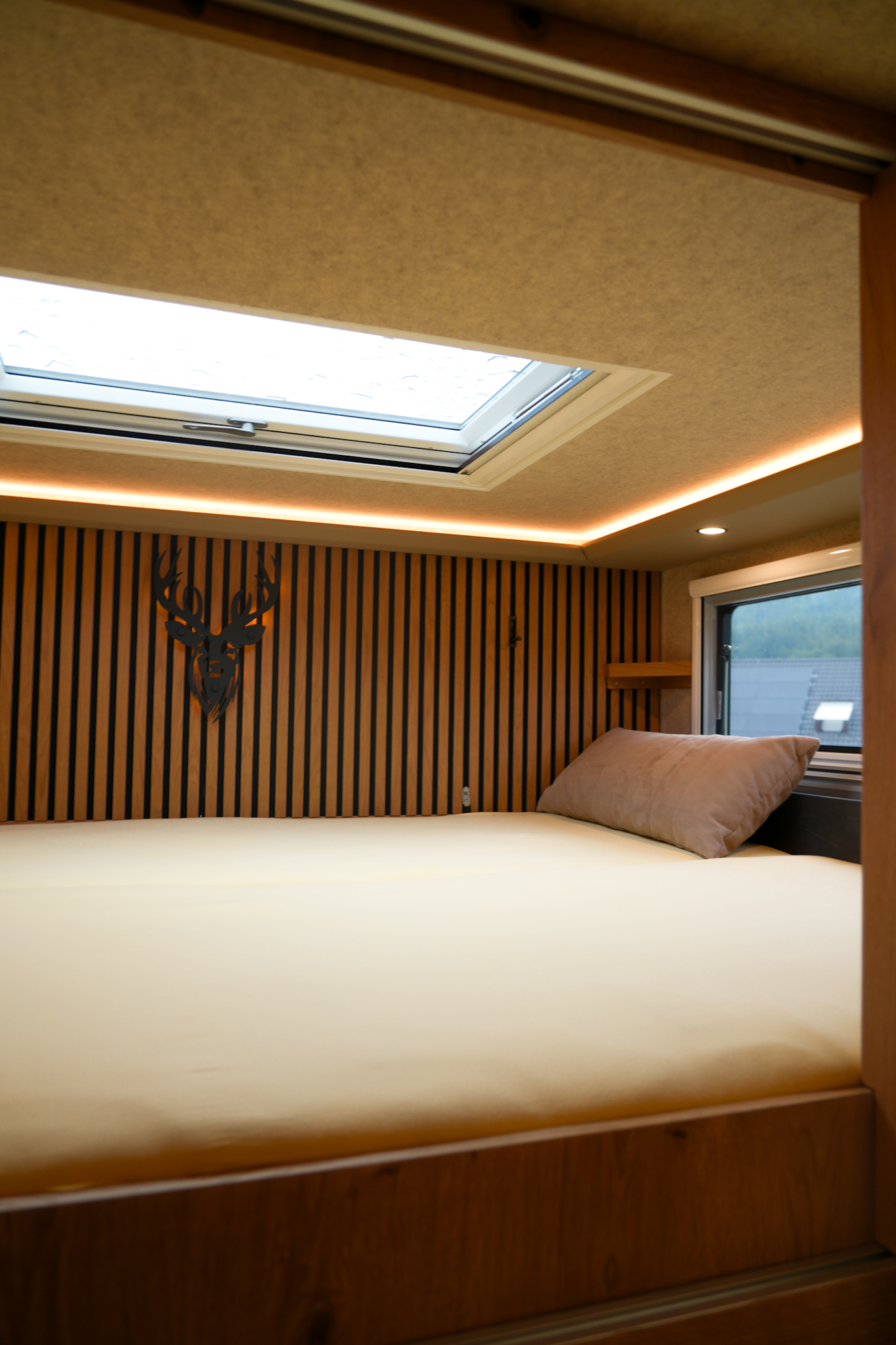

SLEEPING AREA:
high-quality mattresses on pocket springs from the company Cube 2 storage boxes and a smart TV. Large skylight and a large side window. Separate radiator with controls for heating
Indirect lighting system and dimmable spots
BATHROOM:
large shower with wall heatingsystem 900mm X 900mm X 2100 mm real glass sliding door. dimmable lighting
chopper toilet with a 250-liter black water tank
large corner sink with mirror cabinet and under cabinet
The glass sliding door separates the bathroom from the living area.

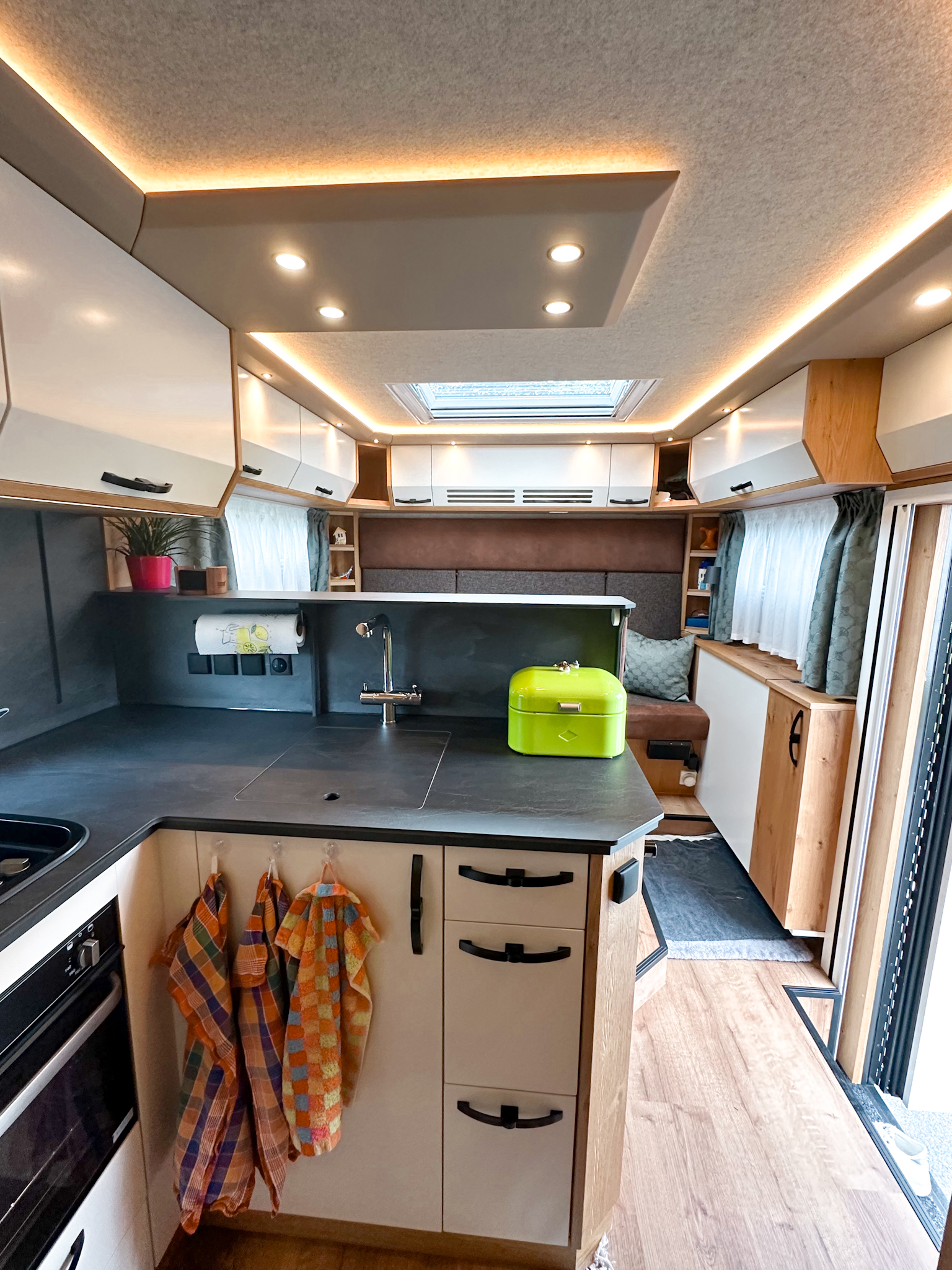

KITCHEN AREA:
large compressor refrigerator with freezer compartment from Kissman.
3 burner gas cooktop and oven. Gas tank with a volume of 70 liters.
a window behind the cooking area
electrically adjustable coffee machine. a lot of storage space for dishes and kitchen items
large stainless steel sink faucet with two outlets normal water and drinking water (Alpfilter)
various dimmable lighting throughout the kitchen

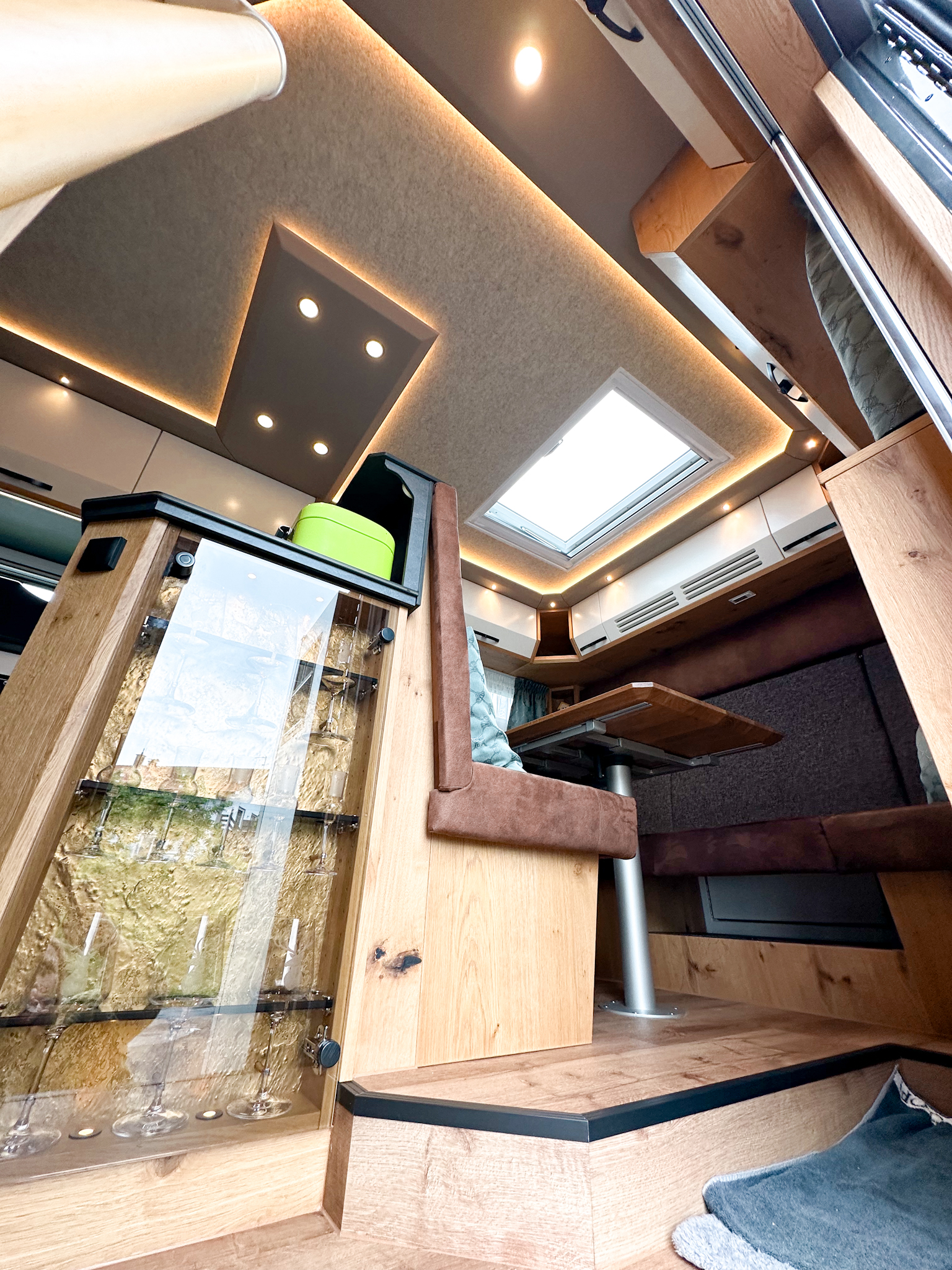

LIVING AREA:
U-shaped seating area for a minimum of 4 people. Seating areas can be lifted for ample storage.
electric retractable smart television
large movable table top
large skylight above the table with a side window on the left and right
many wall cabinets for large storage capacity
Access to the driver’s cabin can be cleared by folding up the seat and backrest.

FURTHER TECHNICAL EQUIPMENT
support pillars system from the company HPC
two-piston compressor for inflating tires
outdoor kitchen with extendable table and work surface with electrical and gas connections for kitchen appliances
many stainless steel dust boxes in the outdoor area
4.2 ton winch permanently mounted on the front side with 8 sand plates
motorcycle loading systems
5 pice HUTCHINSON aluminum rims 10×20, 10 holes, 2-piece, with CTIS, tubeless TL, BEADLOCK RIMS.
electrically operated side flap
gerne persönliche Gespräche erwünscht.
